Defense · Drawing-based custom machining
Electronics Mounting Bracket: Application & Engineering Review
Machined bracket geometry for mounting general electronic equipment to a reviewed platform. This component geometry is presented to help engineering and purchasing teams specify a custom part. Final material, dimensions and suitability are defined by your approved design.
What problem should this part solve?
Mounting faces must locate the equipment without forcing it into alignment during assembly. Start with the functional interfaces so that manufacturing and inspection work from the same acceptance criteria.
Material, process and inspection plan
| Application | Machined bracket geometry for mounting general electronic equipment to a reviewed platform. |
|---|---|
| Manufacturing route | CNC milling and drilling with an agreed reference-face and hole-location strategy. |
| Material options to review | Aluminum or stainless steel specified against stiffness, environment and project documentation needs. |
| Surface finish to specify | Deburring and compatible protective finish; identify conductive contact faces and visible surfaces. |
| Critical inspection features | Mounting-hole pattern, face relationship, overall envelope and edge condition. |
| Dimensions & tolerance | Made to the approved customer drawing. Supply overall dimensions in mm, datums, fits and feature-specific tolerances; final capability is confirmed after engineering review. |
| Prototype & production | Quote sample and repeat-order quantities separately. Lead time, inspection documents and delivery scope are confirmed in the quotation. |
Machining difficulty and practical solution
CNC milling and drilling with an agreed reference-face and hole-location strategy. Mounting-hole pattern, face relationship, overall envelope and edge condition are the features to prioritize in the setup and inspection plan. Review tool access and workholding before freezing the drawing; agree any secondary operation rather than assuming it is included.
RFQ and sample approval checklist
Provide the CAD model and revision-controlled drawing, exact material grade, mounting-hole pattern, face relationship, overall envelope and edge condition, required finish and prototype/production quantities. Identify the features that control assembly and state the reports needed for release.
- Approve the first-piece measurement scope and the applicable drawing revision.
- Confirm material documents, final finish and packaging needed for your assembly.
- Review the sample against mating parts before approving repeat production.
Can LXCET review a custom version?
Send your drawing for a feasibility review of custom machined electronics mounting bracket. The equipment and process guide explains listed machine ranges; the quality and inspection page explains how to define acceptance evidence. A machine’s travel or listed precision value is not a universal finished-part tolerance.
Request a Drawing Review → tonyzhou@lxcet.com
Related Defense components
Technical reference and image scope
Connector shell, insert, contacts and seals are separate design elements. This general hardware example does not claim MIL qualification. TE Connectivity connector construction example.

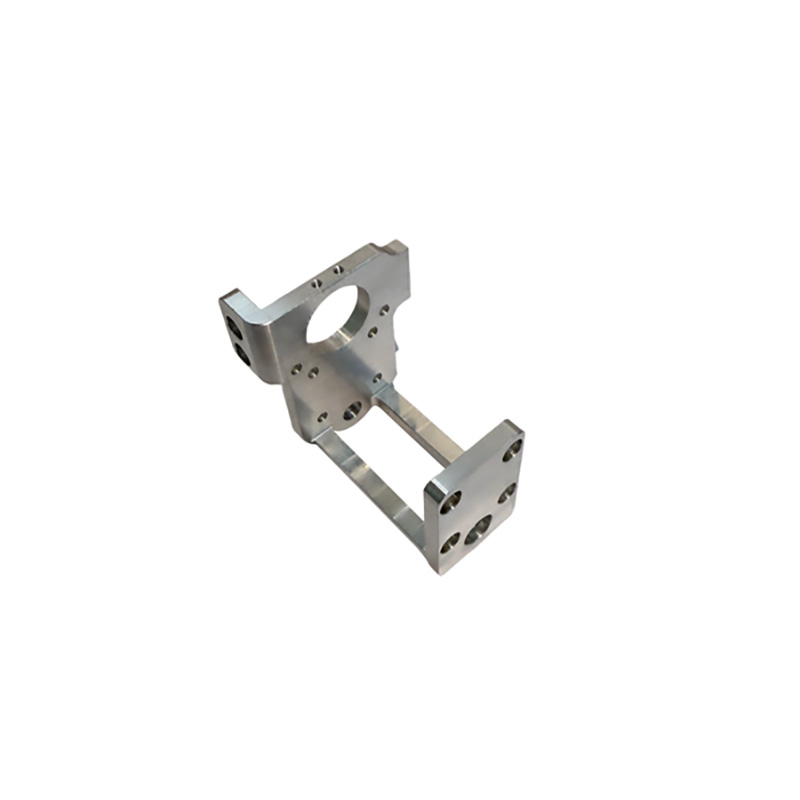

Product photograph from the existing LXCET media library. Application descriptions are engineering review examples, not claims of a delivered customer program, certification or tested service rating. Material cannot be verified from appearance alone.
Electronics Mounting Bracket
Machined bracket geometry for mounting general electronic equipment to a reviewed platform. Review materials, machining, surface finish and critical inspection features with LXCET before quotation.
Customizable parameters
Alu:6061/7075/5052
Steel:45#, SUS304, SUS316
Brass/Copper:H59, C110
Plastic:POM, PA66, PEEK
Ti: TC4
- CNC Turning
- CNC Milling
- Drilling
- Tapping
- Sandblasting
- Anodizing
- Polishing
- Zinc/Nickel Plating
- Black Oxide
- Deburr
