Injection Molding Machine Nozzle: Application & Engineering Review
Turned nozzle geometry for a specified molding-machine interface. This component geometry is presented to help engineering and purchasing teams specify a custom part. Final material, dimensions and suitability are defined by your approved design.
What problem should this part solve?
Thread mismatch, bore condition or an incorrect contact profile can create assembly and flow problems. Start with the functional interfaces so that manufacturing and inspection work from the same acceptance criteria.
Material, process and inspection plan
| Application | Turned nozzle geometry for a specified molding-machine interface. |
|---|---|
| Manufacturing route | CNC turning, drilling, boring and threading; review the contact profile against the mating drawing. |
| Material options to review | Use the customer-specified steel or stainless grade and heat-treatment condition. |
| Surface finish to specify | Controlled deburring and a specified internal and external finish; review wear-related finishing separately. |
| Critical inspection features | Thread form, bore dimensions, contact geometry and axial shoulder locations. |
| Dimensions & tolerance | Made to the approved customer drawing. Supply overall dimensions in mm, datums, fits and feature-specific tolerances; final capability is confirmed after engineering review. |
| Prototype & production | Quote sample and repeat-order quantities separately. Lead time, inspection documents and delivery scope are confirmed in the quotation. |
Machining difficulty and practical solution
CNC turning, drilling, boring and threading; review the contact profile against the mating drawing. Thread form, bore dimensions, contact geometry and axial shoulder locations are the features to prioritize in the setup and inspection plan. Review tool access and workholding before freezing the drawing; agree any secondary operation rather than assuming it is included.
RFQ and sample approval checklist
Provide the CAD model and revision-controlled drawing, exact material grade, thread form, bore dimensions, contact geometry and axial shoulder locations, required finish and prototype/production quantities. Identify the features that control assembly and state the reports needed for release.
- Approve the first-piece measurement scope and the applicable drawing revision.
- Confirm material documents, final finish and packaging needed for your assembly.
- Review the sample against mating parts before approving repeat production.
Can LXCET review a custom version?
Send your drawing for a feasibility review of custom injection molding machine nozzle machining. The equipment and process guide explains listed machine ranges; the quality and inspection page explains how to define acceptance evidence. A machine’s travel or listed precision value is not a universal finished-part tolerance.
Request a Drawing Review → tonyzhou@lxcet.com
Related Industrial Machinery components
- Hard-Anodized Guide Shaft Support Bracket
- Stainless Steel Fixture Plate
- Precision Test Equipment Fixture
Technical reference and image scope
Functional fit requirements should drive the tolerances of mating features. SKF bearing interface guidance.

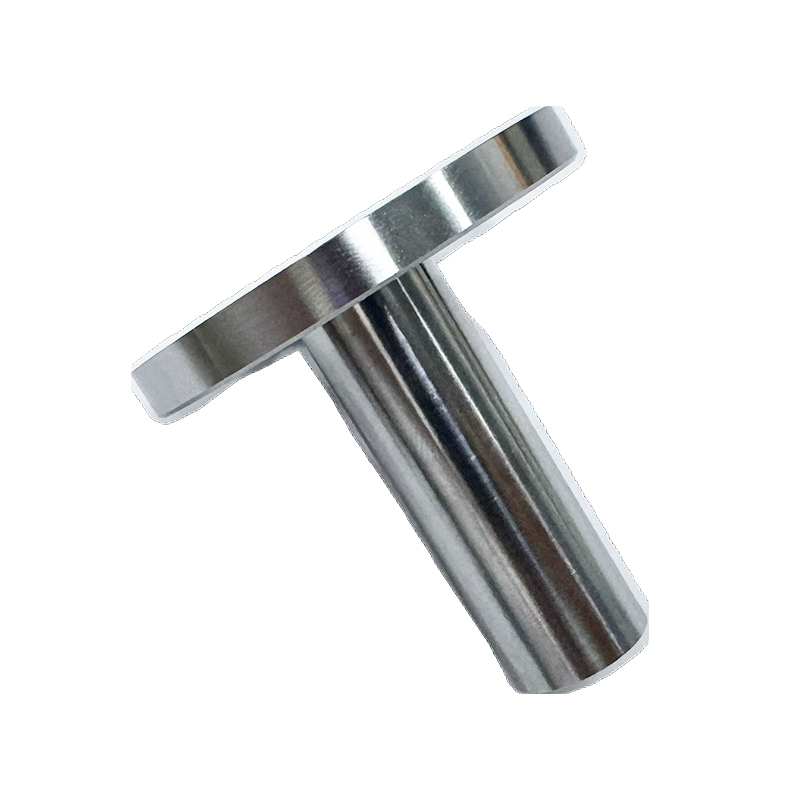

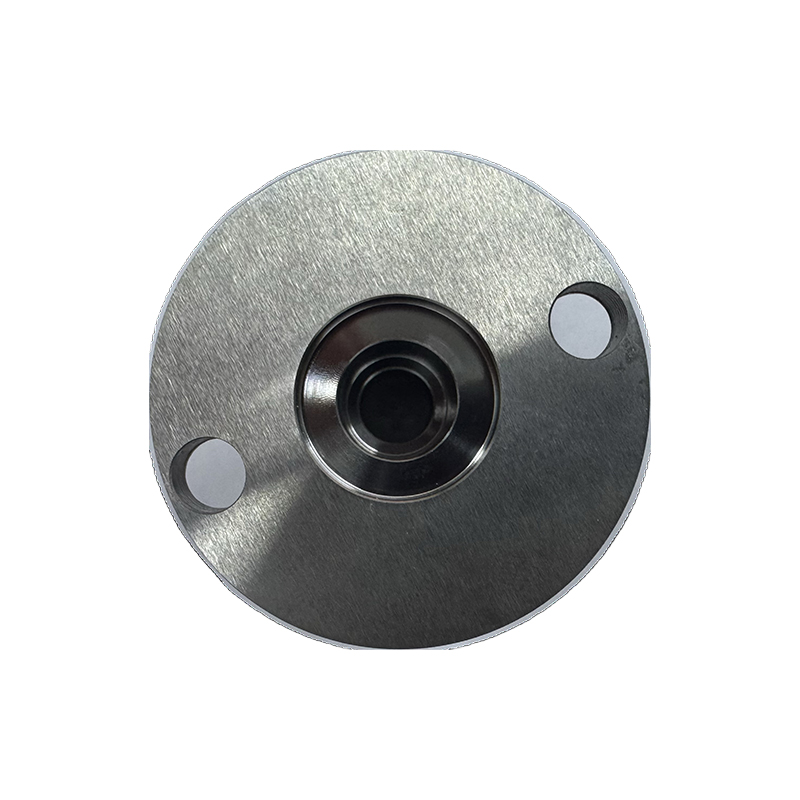

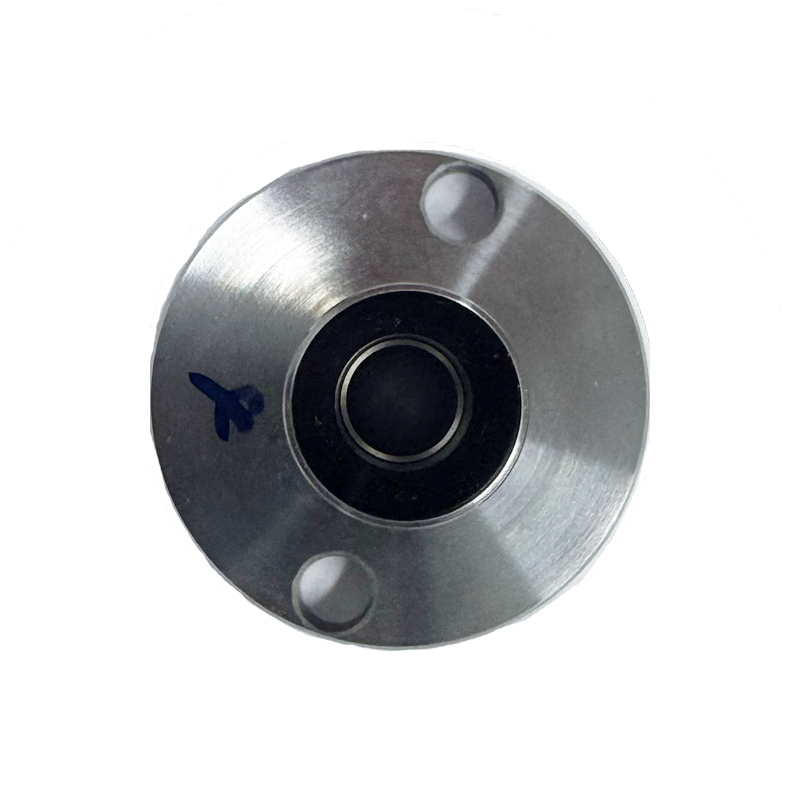

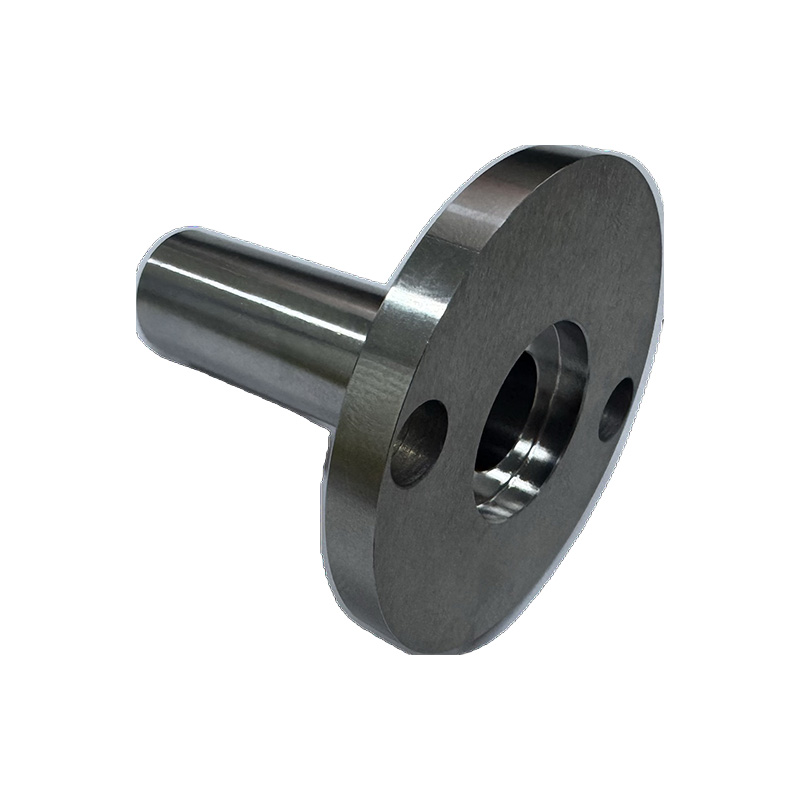

Product photograph from the existing LXCET media library. Application descriptions are engineering review examples, not claims of a delivered customer program, certification or tested service rating. Material cannot be verified from appearance alone.
Injection Molding Machine Nozzle
Turned nozzle geometry for a specified molding-machine interface. Review materials, machining, surface finish and critical inspection features with LXCET before quotation.
Customizable parameters
Alu:6061/7075/5052
Steel:45#, SUS304, SUS316
Brass/Copper:H59, C110
Plastic:POM, PA66, PEEK
Ti: TC4
