Machined Equipment Mounting Bracket: Application & Engineering Review
Angle-bracket geometry for a qualified equipment-mounting design. This component geometry is presented to help engineering and purchasing teams specify a custom part. Final material, dimensions and suitability are defined by your approved design.
What problem should this part solve?
Lightweight brackets can distort during clamping, changing the relationship between mounting faces after release. Start with the functional interfaces so that manufacturing and inspection work from the same acceptance criteria.
Material, process and inspection plan
| Application | Angle-bracket geometry for a qualified equipment-mounting design. |
|---|---|
| Manufacturing route | CNC milling and drilling with supported clamping and a reviewed datum strategy. |
| Material options to review | Aluminum or stainless steel grade selected against stiffness, mass and program requirements. |
| Surface finish to specify | Deburring and a drawing-specified protective finish; control countersink edges and contact faces. |
| Critical inspection features | Mounting-hole location, face relationship, flatness after unclamping and edge condition. |
| Dimensions & tolerance | Made to the approved customer drawing. Supply overall dimensions in mm, datums, fits and feature-specific tolerances; final capability is confirmed after engineering review. |
| Prototype & production | Quote sample and repeat-order quantities separately. Lead time, inspection documents and delivery scope are confirmed in the quotation. |
Machining difficulty and practical solution
CNC milling and drilling with supported clamping and a reviewed datum strategy. Mounting-hole location, face relationship, flatness after unclamping and edge condition are the features to prioritize in the setup and inspection plan. Review tool access and workholding before freezing the drawing; agree any secondary operation rather than assuming it is included.
RFQ and sample approval checklist
Provide the CAD model and revision-controlled drawing, exact material grade, mounting-hole location, face relationship, flatness after unclamping and edge condition, required finish and prototype/production quantities. Identify the features that control assembly and state the reports needed for release.
- Approve the first-piece measurement scope and the applicable drawing revision.
- Confirm material documents, final finish and packaging needed for your assembly.
- Review the sample against mating parts before approving repeat production.
Can LXCET review a custom version?
Send your drawing for a feasibility review of lightweight aerospace equipment bracket CNC. The equipment and process guide explains listed machine ranges; the quality and inspection page explains how to define acceptance evidence. A machine’s travel or listed precision value is not a universal finished-part tolerance.
Request a Drawing Review → tonyzhou@lxcet.com
Related Aerospace components
Technical reference and image scope
Aerospace programs require their own material, inspection and qualification requirements; industry association does not establish approval. Protolabs aerospace machining overview.

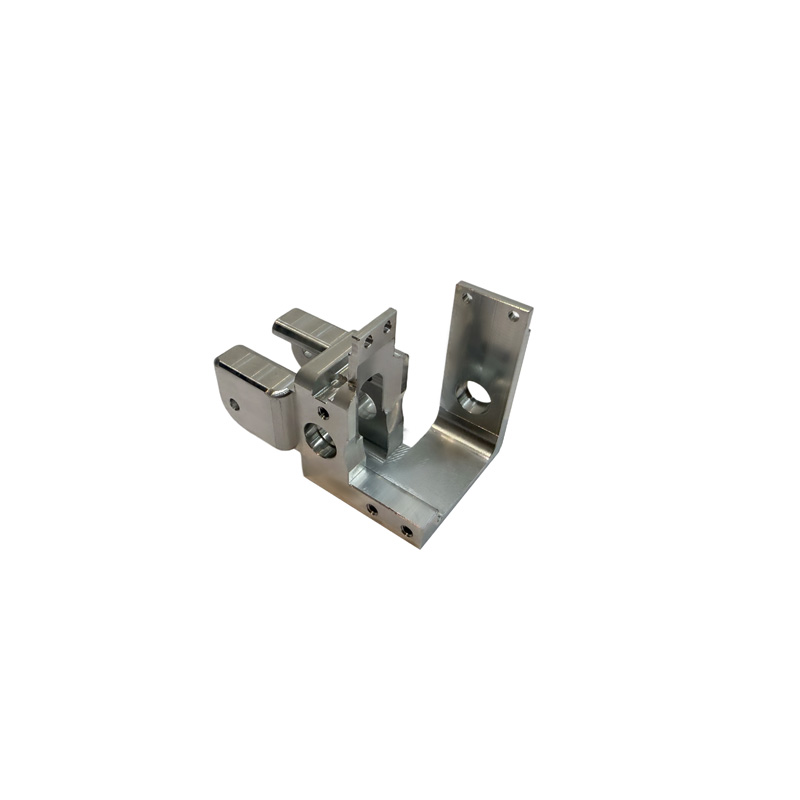

Product photograph from the existing LXCET media library. Application descriptions are engineering review examples, not claims of a delivered customer program, certification or tested service rating. Material cannot be verified from appearance alone.
Machined Equipment Mounting Bracket
Angle-bracket geometry for a qualified equipment-mounting design. Review materials, machining, surface finish and critical inspection features with LXCET before quotation.
Customizable parameters
Alu:6061/7075/5052
Steel:45#, SUS304, SUS316
Brass/Copper:H59, C110
Plastic:POM, PA66, PEEK
Ti: TC4
