Lightweight UAV Link Arm: Application & Engineering Review
Slender link-arm geometry with end interfaces for a reviewed drone mechanism. This component geometry is presented to help engineering and purchasing teams specify a custom part. Final material, dimensions and suitability are defined by your approved design.
What problem should this part solve?
Long, slender parts can spring back after clamping; end-hole relationships must be assessed in the released state. Start with the functional interfaces so that manufacturing and inspection work from the same acceptance criteria.
Material, process and inspection plan
| Application | Slender link-arm geometry with end interfaces for a reviewed drone mechanism. |
|---|---|
| Manufacturing route | CNC milling with supported workholding and a finishing sequence chosen for slender geometry. |
| Material options to review | Specify aluminum alloy or another approved grade and condition; stiffness must be checked by the designer. |
| Surface finish to specify | Controlled deburring and compatible finish, with locating bores protected or compensated. |
| Critical inspection features | End-hole spacing, alignment, section thickness and flatness after unclamping. |
| Dimensions & tolerance | Made to the approved customer drawing. Supply overall dimensions in mm, datums, fits and feature-specific tolerances; final capability is confirmed after engineering review. |
| Prototype & production | Quote sample and repeat-order quantities separately. Lead time, inspection documents and delivery scope are confirmed in the quotation. |
Machining difficulty and practical solution
CNC milling with supported workholding and a finishing sequence chosen for slender geometry. End-hole spacing, alignment, section thickness and flatness after unclamping are the features to prioritize in the setup and inspection plan. Review tool access and workholding before freezing the drawing; agree any secondary operation rather than assuming it is included.
RFQ and sample approval checklist
Provide the CAD model and revision-controlled drawing, exact material grade, end-hole spacing, alignment, section thickness and flatness after unclamping, required finish and prototype/production quantities. Identify the features that control assembly and state the reports needed for release.
- Approve the first-piece measurement scope and the applicable drawing revision.
- Confirm material documents, final finish and packaging needed for your assembly.
- Review the sample against mating parts before approving repeat production.
Can LXCET review a custom version?
Send your drawing for a feasibility review of custom lightweight UAV linkage arm CNC. The equipment and process guide explains listed machine ranges; the quality and inspection page explains how to define acceptance evidence. A machine’s travel or listed precision value is not a universal finished-part tolerance.
Request a Drawing Review → tonyzhou@lxcet.com
Related Drones components
Technical reference and image scope
Thin and slender features should be reviewed for tool access and deflection. Protolabs CNC machining design guidance.
Product photograph from the existing LXCET media library. Application descriptions are engineering review examples, not claims of a delivered customer program, certification or tested service rating. Material cannot be verified from appearance alone.

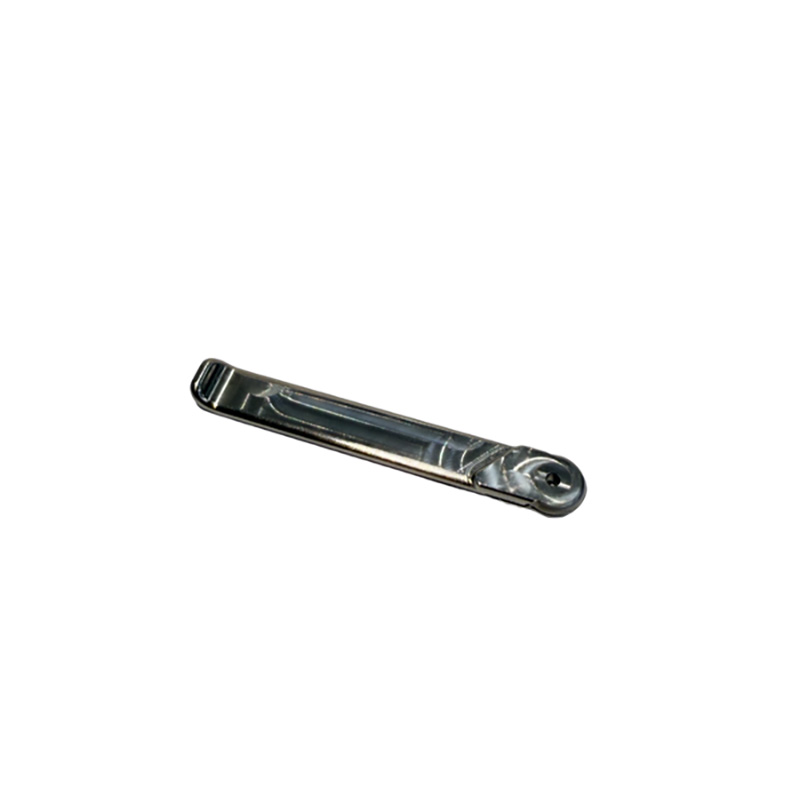

Lightweight UAV Link Arm
Slender link-arm geometry with end interfaces for a reviewed drone mechanism. Review materials, machining, surface finish and critical inspection features with LXCET before quotation.
Customizable parameters
Alu:6061/7075/5052
Steel:45#, SUS304, SUS316
Brass/Copper:H59, C110
Plastic:POM, PA66, PEEK
Ti: TC4
