UAV Clevis Link Mount: Application & Engineering Review
Forked link-mount geometry for a mechanical connection in a UAV design. This component geometry is presented to help engineering and purchasing teams specify a custom part. Final material, dimensions and suitability are defined by your approved design.
What problem should this part solve?
Unequal lug spacing or pin-hole misalignment can bind the linkage and change assembly loads. Start with the functional interfaces so that manufacturing and inspection work from the same acceptance criteria.
Material, process and inspection plan
| Application | Forked link-mount geometry for a mechanical connection in a UAV design. |
|---|---|
| Manufacturing route | CNC milling, slot machining and coordinated drilling or boring of the two lugs. |
| Material options to review | Specify aluminum alloy or stainless steel against mass, load and environmental requirements. |
| Surface finish to specify | Deburring and compatible protective finishing; control pin-hole size after any coating. |
| Critical inspection features | Lug spacing, pin-hole alignment, mounting-interface location and edge breaks. |
| Dimensions & tolerance | Made to the approved customer drawing. Supply overall dimensions in mm, datums, fits and feature-specific tolerances; final capability is confirmed after engineering review. |
| Prototype & production | Quote sample and repeat-order quantities separately. Lead time, inspection documents and delivery scope are confirmed in the quotation. |
Machining difficulty and practical solution
CNC milling, slot machining and coordinated drilling or boring of the two lugs. Lug spacing, pin-hole alignment, mounting-interface location and edge breaks are the features to prioritize in the setup and inspection plan. Review tool access and workholding before freezing the drawing; agree any secondary operation rather than assuming it is included.
RFQ and sample approval checklist
Provide the CAD model and revision-controlled drawing, exact material grade, lug spacing, pin-hole alignment, mounting-interface location and edge breaks, required finish and prototype/production quantities. Identify the features that control assembly and state the reports needed for release.
- Approve the first-piece measurement scope and the applicable drawing revision.
- Confirm material documents, final finish and packaging needed for your assembly.
- Review the sample against mating parts before approving repeat production.
Can LXCET review a custom version?
Send your drawing for a feasibility review of precision UAV clevis bracket machining. The equipment and process guide explains listed machine ranges; the quality and inspection page explains how to define acceptance evidence. A machine’s travel or listed precision value is not a universal finished-part tolerance.
Request a Drawing Review → tonyzhou@lxcet.com
Related Drones components
Technical reference and image scope
Thin and slender features should be reviewed for tool access and deflection. Protolabs CNC machining design guidance.
Product photograph from the existing LXCET media library. Application descriptions are engineering review examples, not claims of a delivered customer program, certification or tested service rating. Material cannot be verified from appearance alone.

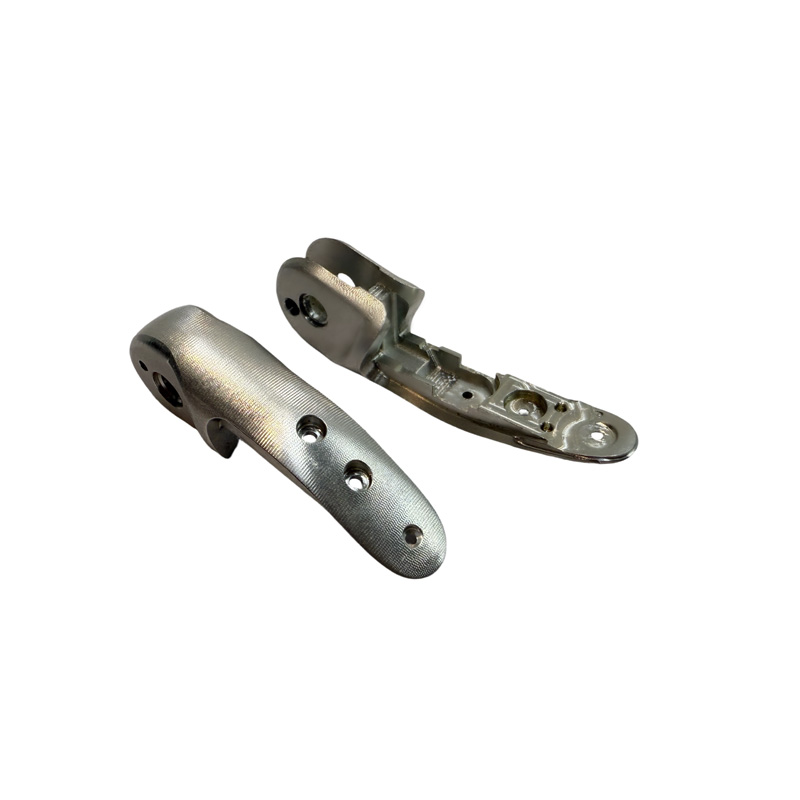

UAV Clevis Link Mount
Forked link-mount geometry for a mechanical connection in a UAV design. Review materials, machining, surface finish and critical inspection features with LXCET before quotation.
Customizable parameters
Alu:6061/7075/5052
Steel:45#, SUS304, SUS316
Brass/Copper:H59, C110
Plastic:POM, PA66, PEEK
Ti: TC4
